Higher Load Bearing Capacity High Tensile Modulus Polypropylene Uniaxial Plastic Geogrid
Uniaxial Plastic Geogrid Introduction
Plastic uniaxial geogrid is manufactured from plastic materials which may be high-density polypropylene or high-density polyethylene (HDPE) resins by the hot extruding process to make the resins into thin plates, the plates are punched into the regular holes for the formation of desired grids, and then the punching patterns are stretched longitudinally into the desired meshes to develop designed tensile strength.
Uniaxial Plastic Geogrid Feature
1,Good aperture stability
2,High junction efficiency
3,Flexibility and versatility in nature
4,Easy to construct, fast deployment
5,Suitable for any weather conditions
6,Land optimization and land utilization properly
7,High durability, long service life
8,Custom fabrication available
Uniaxial Plastic Geogrid Specification
| Properties | GG60PP | GG80PP | GG110PP | GG150PP | GG260PP | GG300PP |
| Tensile Strength (kN/m) | 60 | 80 | 110 | 150 | 260 | 300 |
| Elongation Ratio | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% | ≤10% |
| Strength at 2% Elongation (≥kN/m) | 17 | 26 | 32 | 45 | 94 | 105 |
| Strength at 5% Elongation (≥kN/m) | 35 | 48 | 64 | 90 | 185 | 195 |
| Roll Length (m) | 100 | 100 | 50 | 50 | 50 | 50 |
| Roll Width (m) | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 | 1-3 |
Plastic Uniaxial Geogrid Applications
Plastic uniaxial geogrid is the kind of high strength geosynthetic material which can be used for any soil stabilization and reinforcement applications. The uniaxial plastic geogrid can bears alternating loads in the foundation and surface layer of road, it can also reduce the settlement of road surface and improve the self-support capacity of the soil. The uniaxial plastic geogrid can reduce the pressure of the retaining wall and extend the service life. Plastic uniaxial geogrid is widely used in dams, tunnels, piers, roads, railways, construction and other fields.
Product Tags:
|
|

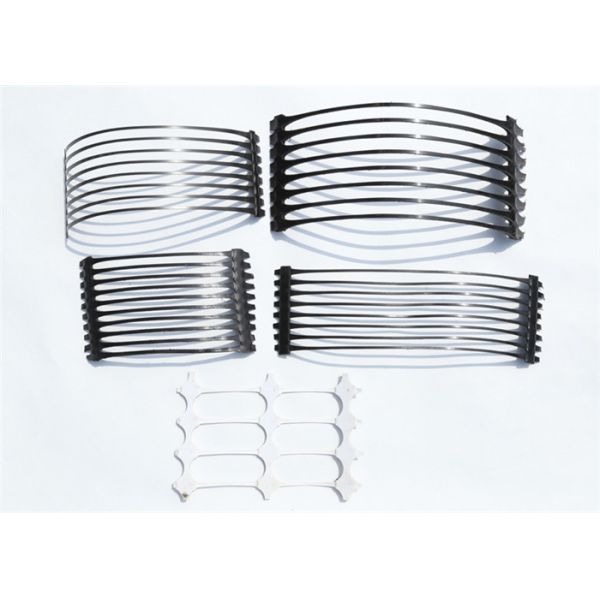

Higher Load Bearing High Tensile 300kN/M Uniaxial Plastic Geogrid Images
|
